Isoparfire® EI Elegant
Fire-resistant mineral fiber wall panels

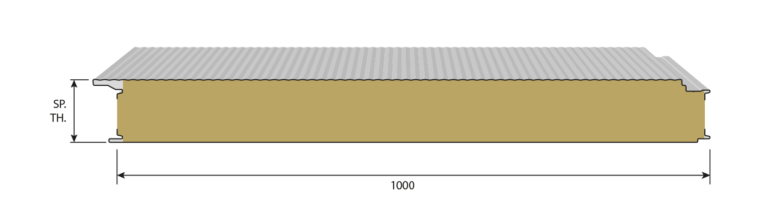

ISOPARFIRE® EI ELEGANT is a panel designed for use in walls that require safety and high aesthetic performance. ISOPARFIRE® EI ELEGANT is distinguished by its concealed fixing system, ensuring continuity of the panels along the wall surface. It is faced on both sides with pre-painted galvanized steel or stainless steel, with a standard thickness of 0.5 mm.
Different thicknesses of the double metal facing are available upon request. The fire reaction classification of ISOPARFIRE® EI ELEGANT is Class A2-s1,d0.
Fire resistance:
EI 60 for 80 mm thick panels
EI 90 for 100 mm thick panels
EI 120 for 120-150-172-200-220-240 mm thick panels
Available in the following thicknesses:
80–100–120–150–172–200–220–240 mm.
During installation, a steel plate must be used, and a pre-drill hole of at least 10 mm in diameter must be made on the panel. The designer must also evaluate the use of sliding brackets to accommodate thermal expansion.
Certificate
Trasmittance
Customize your data sheet
The online configurator allows you to obtain static values by filling in the required parameters.
THE LOAD CAPACITIES SHOWN IN THE TABLES ARE PURELY INDICATIVE. IT IS THE TASK AND RESPONSIBILITY OF THE DESIGNER APPOINTED BY THE CLIENT TO DEFINE THE LOAD-BEARING CAPACITY OR TO CARRY OUT THE RESISTANCE VERIFICATION IN THE SPECIFIC CASE BEING DESIGNED, PRODUCING A SIGNED CALCULATION REPORT.
Lattonedil SPA reserves the right to make any changes aimed at improving the product without prior notice.
