Isoparfire®.S
Fire resistant wall panel. Up to EI 120.

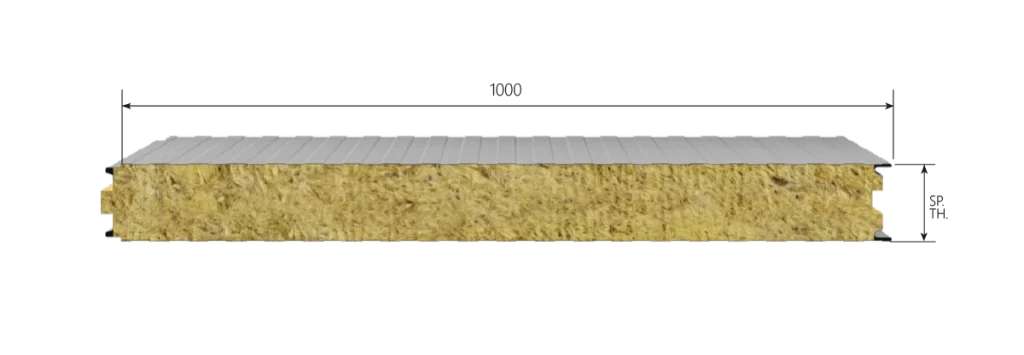

ISOPARFIRE.S is the self-supporting metal panel insulated with mineral wool created to improve all the technical characteristics that a wall panel can offer in the realisation of curtain walls and ceilings, with an eye to safety.

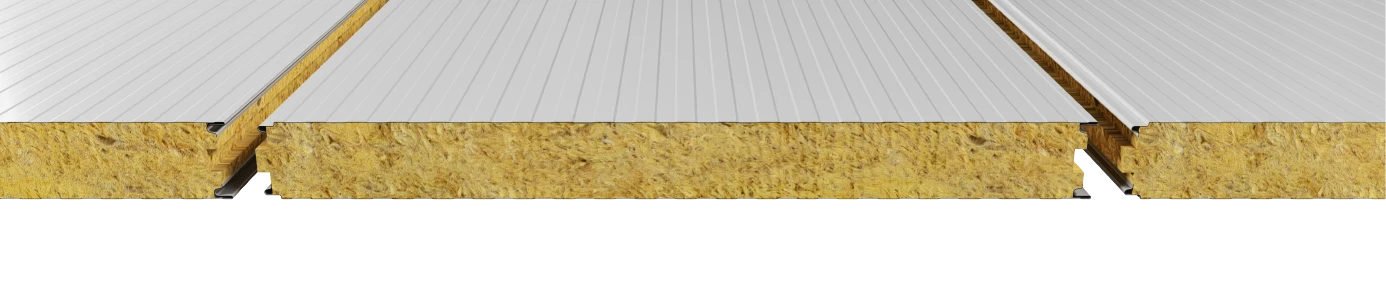

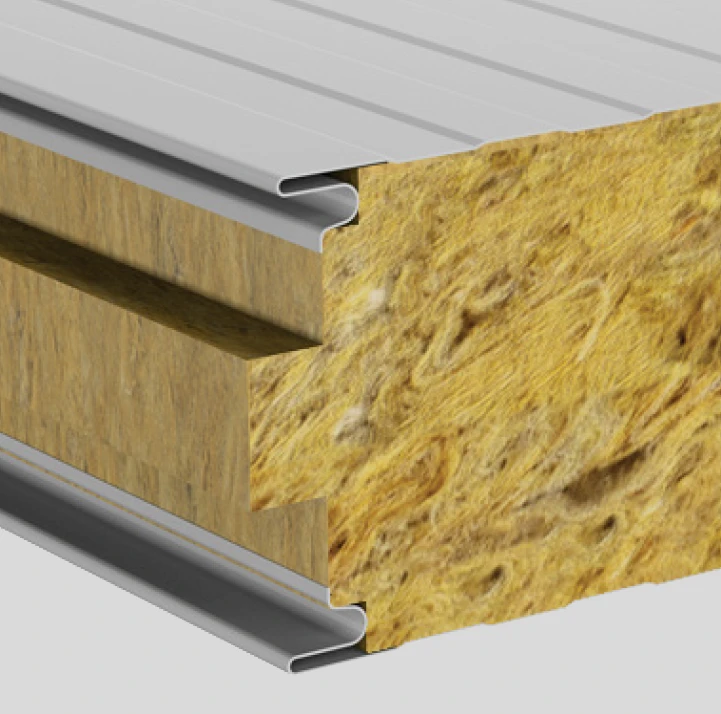

In fact, the ISOPARFIRE.S panel is designed for all external and internal wall and curtain wall constructions that require high performance in terms of reaction and fire resistance. Indeed, the special double interlocking joint with the labyrinth made of sheet metal, combined with the mineral wool insulation, gives the product a perfect tightness for high reaction and fire resistance performance.
EI 30 for xx mm thick panels
EI 60 for xx mm thick panels
EI 90 for xx mm thick panels
EI 120 for xx mm thick panels
Available thickness:
50-60-80-100-120-150-172-200 mm.
Certificate

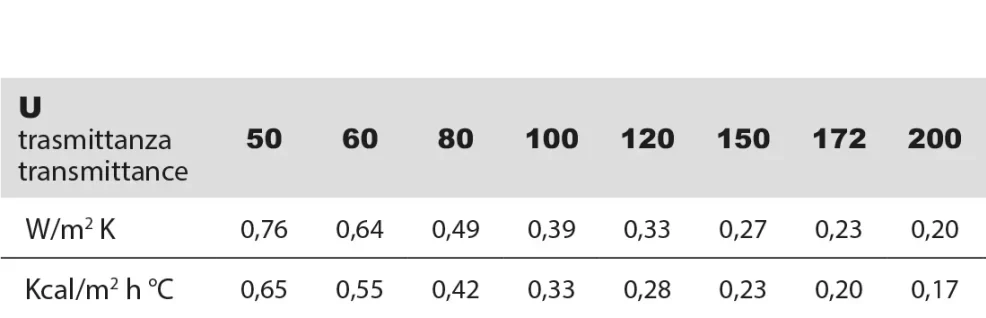

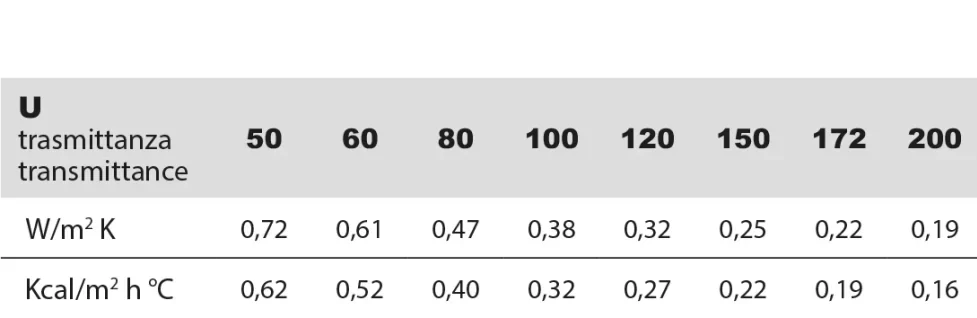

Trasmittance
Customize your data sheet
The online configurator allows you to obtain static values by filling in the required parameters.
THE LOAD CAPACITIES SHOWN IN THE TABLES ARE PURELY INDICATIVE. IT IS THE TASK AND RESPONSIBILITY OF THE DESIGNER APPOINTED BY THE CLIENT TO DEFINE THE LOAD-BEARING CAPACITY OR TO CARRY OUT THE RESISTANCE VERIFICATION IN THE SPECIFIC CASE BEING DESIGNED, PRODUCING A SIGNED CALCULATION REPORT.
Lattonedil SPA reserves the right to make any changes aimed at improving the product without prior notice.
