Isoparfire® elegant.S
Panel with concealed fixing, fire resistant. Up to EI 180.

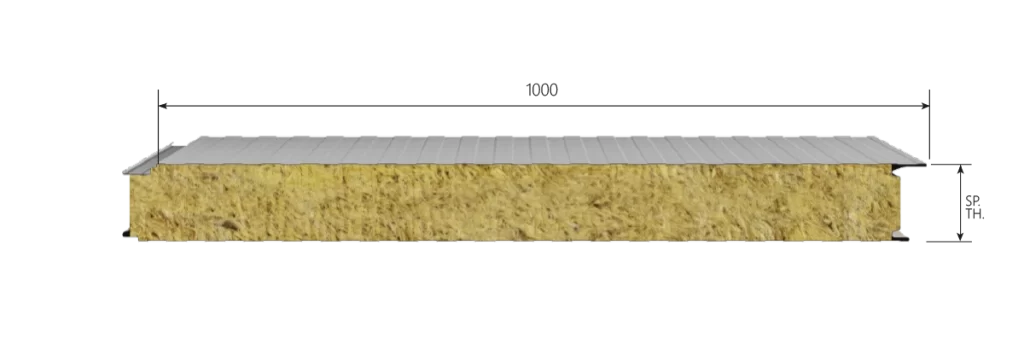

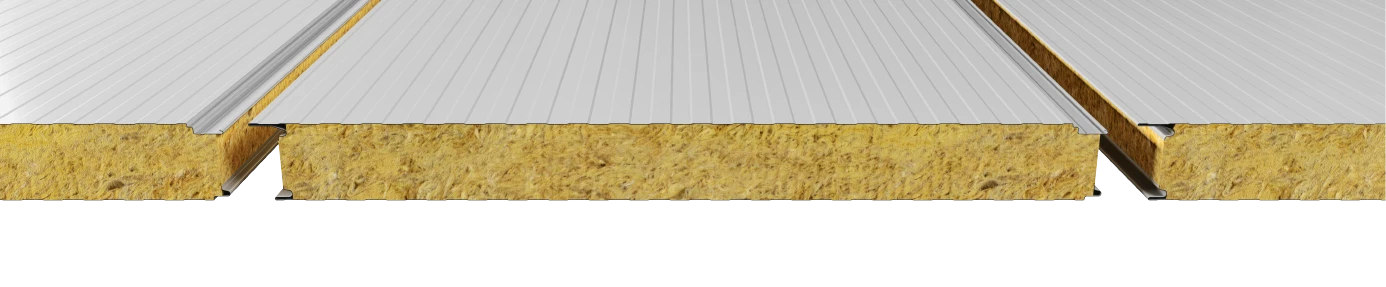

ISOPARFIRE ELEGANT.S is a self-supporting insulated panel with architectural finishes, designed to provide excellent fire and noise protection without compromising the aesthetic quality of the project. The panels can be installed vertically or horizontally. The panel joint features an interlocking system that conceals the fasteners while maintaining all of Lattonedil’s panel sealing guarantees.
Aesthetically, ISOPARFIRE ELEGANT.S allows designers to choose from various surface finishes. The external facing can feature a ribbed profile, a diamond pattern with a 15 mm pitch, or a smooth, flat finish. The wide range of finishes creates shading effects on façade surfaces, adding visual movement and enhancing architectural value.
Fire resistance ratings:
EI 60 for 80 mm thick panels
EI 90 for 100, 120, 150 mm thick panels
EI 120 for 172 mm thick panels
EI 180 for 200 mm thick panels
Available thicknesses: 50, 60, 80, 100, 120, 150, 172, 200 mm
Certificate
Trasmittance
Customize your data sheet
The online configurator allows you to obtain static values by filling in the required parameters.
THE LOAD CAPACITIES SHOWN IN THE TABLES ARE PURELY INDICATIVE. IT IS THE TASK AND RESPONSIBILITY OF THE DESIGNER APPOINTED BY THE CLIENT TO DEFINE THE LOAD-BEARING CAPACITY OR TO CARRY OUT THE RESISTANCE VERIFICATION IN THE SPECIFIC CASE BEING DESIGNED, PRODUCING A SIGNED CALCULATION REPORT.
Lattonedil SPA reserves the right to make any changes aimed at improving the product without prior notice.
