TTACK®

The world’s only panel for flat roofs

METALLIC COATINGS
SENDZIMIR system continuous hot-dip galvanized steel (UNI EN 10346), precoated on continuous lines with polyester, high-resistance polyester or PVDF (polyvinylidene fluorides) resin-based cycles, on the exposed side. A primer is applied to the underside of the panel.
INSULATION
Composed of rigid polyurethane foam that complies with European regulations concerning reaction to fire.
  • Composition of polyurethane resin type formula (PUR or PIR subject to request)
  • Thermal conductivity coefficient λ = 0.023 W/mk
  • Average density 40 kg/m3 ± 10%
  • Compressive strength ≥ 0.11 MPa (at 10% deformation)
  • Tensile strength ≥ 0.1 MPa
  • Shear strength ≥ 0.1 MPa
  • Non-hygroscopic as material is more than 95% closed cell
  • Adherence to support surfaces 1 kg/cm²
  • U-value thermal transmittance coefficient in accordance with EN14509
JOINT

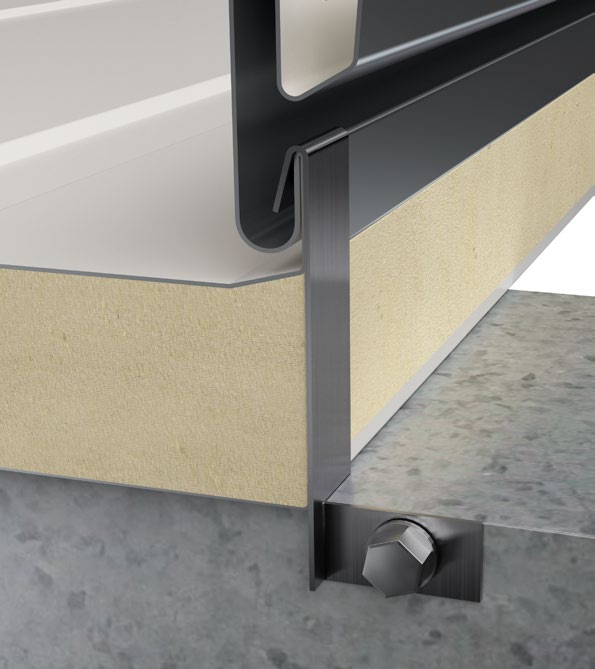

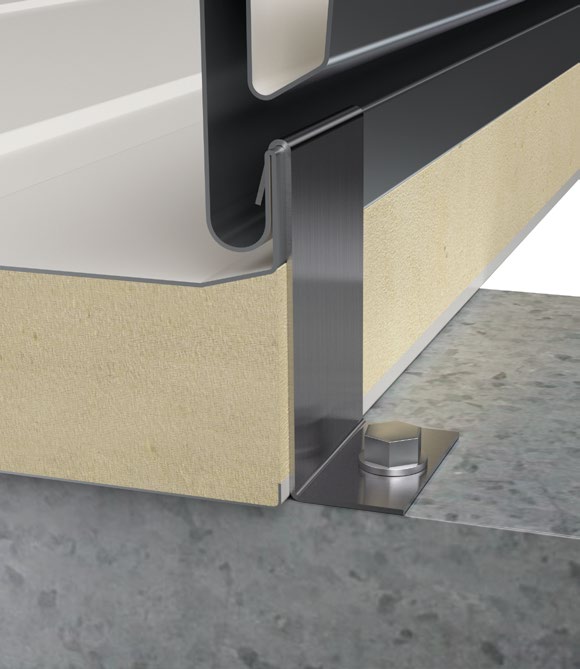

The TTACK® panel joint has been designed to prevent any kind of infiltration and thermal bridges.
A continuous gasket is inserted during the production process.
STATIC FEATURES
TTACK® panels are classed as self-supporting in accordance with the definition in UNI EN 14509 regulation “… a panel capable of supporting, by virtue of its materials and shape, its own weight and in case of panels fixed to spaced structural supports, all applied loads (snow, wind, air pressure), and transmitting these loads to the supports.
The load values refer to panels installed horizontally and subject to a distributed load, without taking into consideration thermal effects, which are verified by the designer.
The creep effect for the insulating material, caused by accidental overloads, is taken into account in the static calculation.

TOLERANCES (See UNICMI regulation)
Coating thickness: in accordance with reference standards for the products used.
Length: if ≤ 3000 mm ± 5 mm; if > 3000 mm ± 10 mm
Panel thickness: if ≤ 100 mm ± 2 mm; if > 100 mm ± 2%
Perpendicularity deviation: so = horizontal deviation
so ≤ 0.6 % of the nominal width covered
Out of square: max. 3 mm

PROTECTION OF METALLIC COATINGS
All panels precoated with the metallic coatings mentioned above are supplied on request with an adhesive polyethylene protective film to prevent damage to the coated layer. LATTONEDIL will not be held liable for any damage to the coating in the event that the material is to be supplied without the protective film.
The protective film must be completely removed during installation of the panels and, in any case, within thirty days of when the material is prepared. Panels still covered with the protective film must not be exposed to direct sunlight for long periods of time.

CAM
BROOF T2
BROOF T3
Transmittance

Static data

PANNELLO TTACK® PER FISSAGGIO FRONTALE

PANNELLO TTACK® PER FISSAGGIO FRONTALE

TOLLERANZE (Vedi norme UNICMI)
Spessore dei rivestimenti: secondo norme di riferimento per i prodotti utilizzati.

Lunghezza: se ≤ 3000 mm ± 5 mm; se > 3000 mm ± 10 mm
Spessore del pannello: se ≤ 100 mm ± 2 mm; se > 100 mm ± 2%
Deviazione della perpendicolarità: so = scostamento orizzontale so ≤ 0,6 % della larghezza nominale coperta
Fuori squadra: max 3 mm

PROTEZIONE RIVESTIMENTI METALLICI
Tutti i pannelli realizzati con i materiali metallici preverniciati di cui al punto sopra vengono forniti su richiesta con del film protettivo in polietilene adesivo per evitare danneggiamenti dello strato verniciato.Qualora il materiale venga fornito senza film protettivo, LATTONEDIL non risponde di eventuali danni presenti sulla verniciatura. Il film protettivo dovrà essere completamente rimosso durante la posa dei pannelli e, in ogni caso, entro un massimo di trenta giorni dall’approntamento dei materiali. I pannelli, ancora rivestiti dal film protettivo, non devono essere esposti all’azione diretta dei raggi solari per lunghi periodi di tempo.
Esteno_ttack
TTACK villetta EFF

Customize your data sheet

The online configurator allows you to obtain static values ​​by filling in the required parameters.

THE LOAD CAPACITIES SHOWN IN THE TABLES ARE PURELY INDICATIVE. IT IS THE TASK AND RESPONSIBILITY OF THE DESIGNER APPOINTED BY THE CLIENT TO DEFINE THE LOAD-BEARING CAPACITY OR TO CARRY OUT THE RESISTANCE VERIFICATION IN THE SPECIFIC CASE BEING DESIGNED, PRODUCING A SIGNED CALCULATION REPORT.

Lattonedil SPA reserves the right to make any changes aimed at improving the product without prior notice.
