ISOTT Gas impermeabile multistrato
Sandwich panel consisting of a PIR foam insulation component without the use of CFCs or HCFCs compliant with the CAM Minimum Environmental Criteria, coated on both sides with a multi-layer impermeable gas coating. Due to its light weight and great rigidity, it is easy to move and position during installation.
APPLICATIONS:
Wall insulation, roof insulation and insulation of floors.

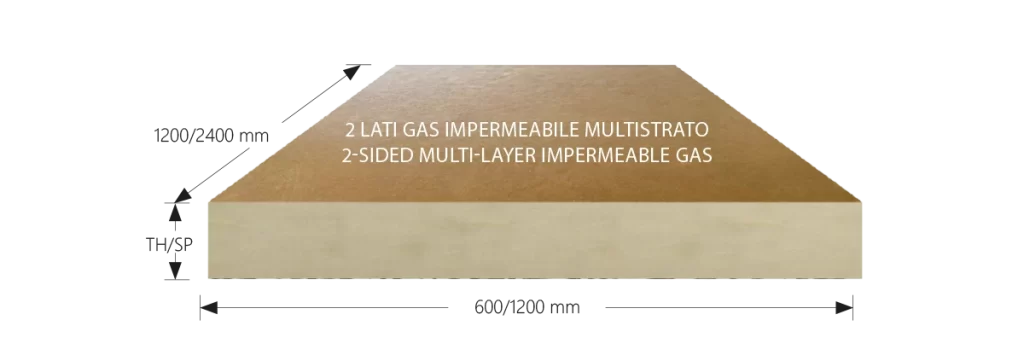

SIZE: 600 x 1200 ; 1200 x 1200; 1200 x 2400 mm.
FINISH: Straight edges on all sides
THICKNESSES: 40-50-60-80-100-120-140 mm.
(Panel can be supplied in other dimensions and thicknesses on request)
Reaction to fire (EN 13501-1, EN 11925-2, EN 13823): Euroclasse F
Compressive strength at 10% crushing (EN 826): 150 kPa
Compressive strength at 2% crushing – (EN 826): >5000 kg/ m²
Tensile strength perpendicular to faces – (EN 1607): 40 kPa
Panel density – ρ (average value including weight of coatings): 36 ± 1,5 kg/m3
Specific heat Cp (average value): 1453 J/kg °K
Vapour diffusion resistance factor – (EN 12086): μ = 148 ± 24
Water absorption by partial immersion, short period (EN 1609): < 0,1 kg/ m²
Dimensional stability (EN 1604) (level): 4 per d ≥ 40 mm 48 h, 70° C, 90% U
Tolerances[mm] (EN 13165):
Lunghezza e Larghezza ± 5 < 1000 mm ± 7,5 da 1001 a 2000 mm
Spessore ± 2 < 50 mm, ±3 da 50 a 75 mm, +5/-2 ≥ 75 mm
Certificate

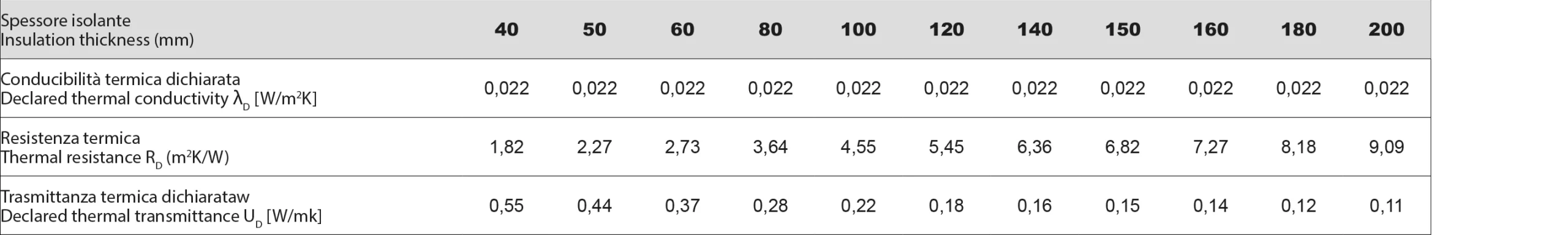

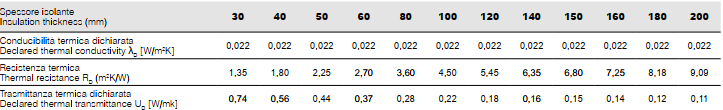

Trasmittance
