ISOTT Fire

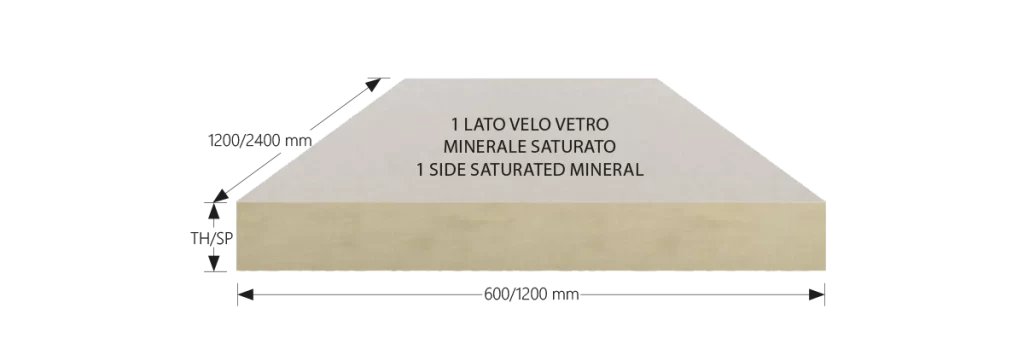

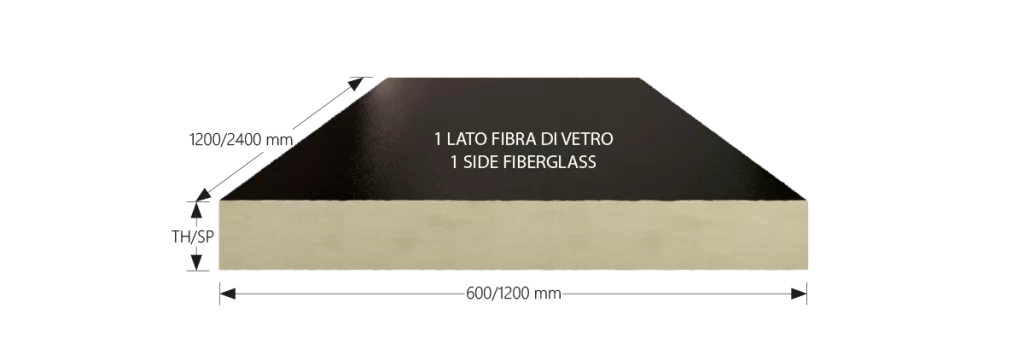

Sandwich panel consisting of an insulating component made of expanded PIR foam without the use of CFCs or HCFCs in compliance with the CAM Minimum Environmental Criteria, covered on the side exposed to fire risk by a special fiberglass coating that expands in contact with flames, guaranteeing high fire protection, and on the other side by saturated mineral glass. Due to its light weight and great rigidity, it is easy to move and position during installation.
APPLICATIONS: Thermal insulation of all situations where high fire protection is required, insulation of ventilated facades, insulation of flat and sloping roofs under cold-applied waterproofing membranes.
SIZE: 600 x 1200 ; 1200 x 1200; 1200 x 2400 mm.
FINISH: Straight edges on all sides
THICKNESSES: 40-50-60-80-100-120 mm.
(Panel can be supplied in other dimensions and thicknesses on request)
Reaction to fire (EN 13501-1): Euroclasse B-s1,d0
Compressive strength at 10% crushing (EN 826): 150 kPa
Compressive strength at 2% crushing – (EN 826): >5000 kg/ m²
Tensile strength perpendicular to faces – (EN 1607): 35 kPa
Panel density – ρ (average value including weight of coatings): 45 ± 2 kg/m3
Specific heat Cp (average value): 1464 J/kg °K
Vapour diffusion resistance factor – (EN 12086): μ = 56 ± 2
Water absorption by partial immersion, short period (EN 1609): < 0,2 kg/ m²
Dimensional stability (EN 1604) (level): 4 per d ≥ 40 mm 48 h, 70° C, 90% U
Tolerances[mm] (EN 13165):
Lunghezza e Larghezza ± 5 < 1000 mm ± 7,5 da 1001 a 2000 mm
Spessore ± 2 < 50 mm, ±3 da 50 a 75 mm, +5/-2 ≥ 75 mm
Certificate

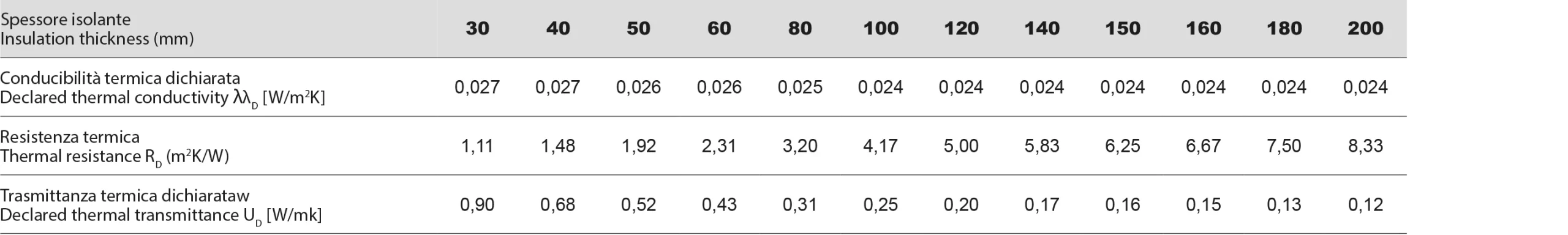

Trasmittance
