ISOTT Farm

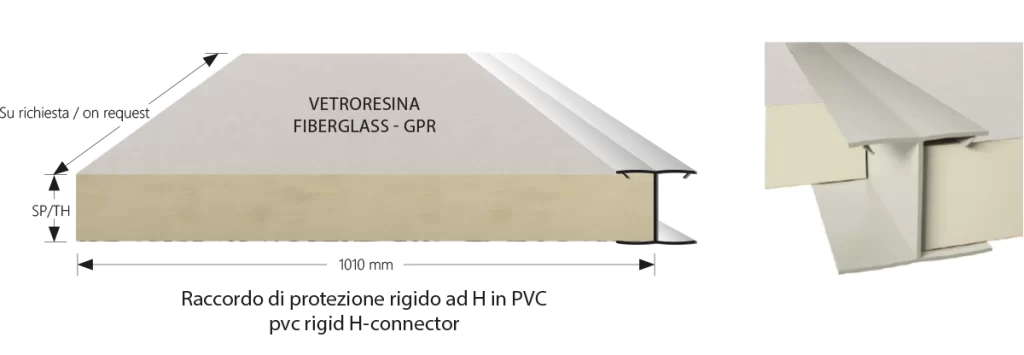

Sandwich panel consisting of a PIR or PUR foam insulation component without the use of CFCs or HCFCs compliant with the CAM Minimum Environmental Criteria, covered on both sides with a Fibreglass coating, for use in livestock facilities. Thanks to its light weight and great rigidity, it is easy to handle and position during set-up with the possibility of supplying an H-shaped support to be positioned between the panels.
APPLICATIONS: Thermal insulation of all situations where high resistance to fumes is required, ideal for insulation of flat and sloping roofs for farms and livestock facilities
SIZE: 1000 x lenght on request
FINISH: Straight edges on all sides
THICKNESSES: 40-50-60-80-100-120-140 mm.
(Panel available in other dimensions and thicknesses on request)
Reaction to fire (EN 13501-1, EN 11925-2, EN 13823)): EUROCLASSE F
Compressive strength at 10% crushing (EN 826): 120 kPa
Tensile strength perpendicular to faces – (EN 1607): 30 kPa
Panel density – ρ (average value including weight of coatings): 36 ± 1,5 kg/m3
Dimensional stability (EN 1604) (level): 3 o 4 48 h, 70° C, 90% U
Tolerances[mm] (EN 13165):
Lunghezza e Larghezza ± 5 < 1000 mm ± 7,5 da 1001 a 2000 mm
Spessore ± 2 < 50 mm, ±3 da 50 a 75 mm, +5/-2 ≥ 75 mm
Certificate

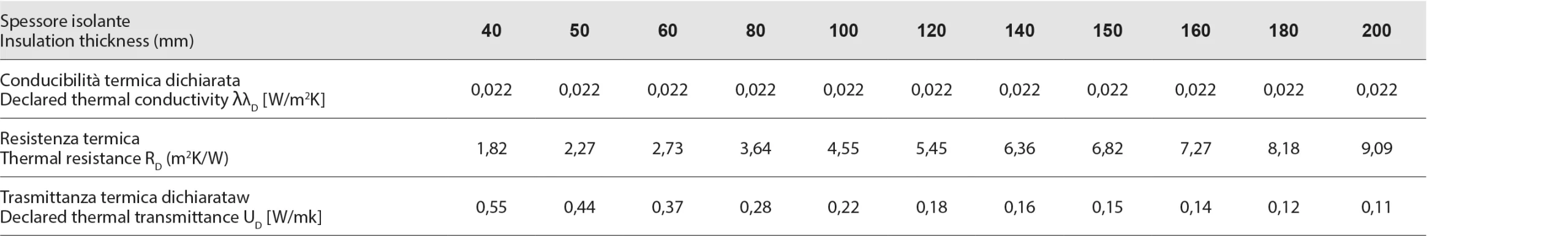

Trasmittance
